Whirlpool LEQ9508PW0 Will Not Start


  • Please log in to reply
13 replies to this topic

#1 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 13 May 2011 - 03:05 PM

> Whirlpool model LEQ9508PW0 SN MS2423047 Won't start changed door switch, starter switch, thermal fuse and checked all thermocouples a ok... put a meter on the power cord ok too still no start but when I plug in and push the start button I can hear the contact being made and also hear the timer going... if I rotate the timer nob to off then I can hear the start contact release... thoughts?

Use the Appliantology Parts Search Box to Find What You Need!
Enter your model number, part number, type of appliance, brand, or even a part description.
365-day return policy on all parts purchased here, even electrical parts that have been installed!

#2 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 13 May 2011 - 03:17 PM

Start a Dryer Cycle and test the voltage from each side of Thermal Fuse to chassis (a good ground)
while someone pushes the Start Switch.
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#3 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 13 May 2011 - 03:23 PM

The thermal fuse has been replace is what you are saying checking that or the timer?

#4 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 13 May 2011 - 03:40 PM

Start a Dryer Cycle and test the voltage from each side of Thermal Fuse to chassis (a good ground)
while someone pushes the Start Switch.

this will test the Timer and the Start Switch ,,,
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#5 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 13 May 2011 - 03:46 PM

What would be the expected result?

The response from the Samurai earlier to my on line question said the forum could help explain how to check the timer function to see if it is broken... any help there?

#6 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 13 May 2011 - 04:31 PM

Start a Dryer Cycle and test the voltage from each side of Thermal Fuse to chassis (a good ground)
while someone pushes the Start Switch.

this will test the Timer and the Start Switch ,,,


.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#7 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 13 May 2011 - 08:07 PM

both sides of the fuse show 120v

#8 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 13 May 2011 - 08:13 PM

OK... Thermal Fuse is still good
and that section of the Timer Contacts ...

NOW, test voltage on Motor pin 4M (maybe Blue wire) to chassis
and also from Pin 4M to Pin 5M (maybe White wire)
(while someone pushes the Start Switch)
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#9 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 14 May 2011 - 06:09 AM

Where are those pins located, off of the timer module?

I did test the 3 wires that came off right side of the timer module and only the top one had voltage coming off it. As I was testing the dryer it started to run for a few seconds and then stopped again (scared the %#@* out of me). I continued to poke around and it came on again for about 5 seconds and then stopped again.

#10 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 14 May 2011 - 08:03 AM

Posted Image
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#11 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 14 May 2011 - 02:57 PM

Ok can you tell me what to do with this?

#12 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 14 May 2011 - 04:03 PM

NOW, test voltage on Motor pin 4M (maybe Blue wire) to chassis
and also from Pin 4M to Pin 5M (maybe White wire)
(while someone pushes the Start Switch)

on Motor Switch as shown in diagram
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#13 Samurai Appliance Repair Man

Samurai Appliance Repair Man

    Shōgun

  • Master Samurai Tech
  • 29,046 posts
  • Location: USA
  • Flavorite Brew:Sapporo Original Draft Rice Lager

Posted 14 May 2011 - 04:09 PM

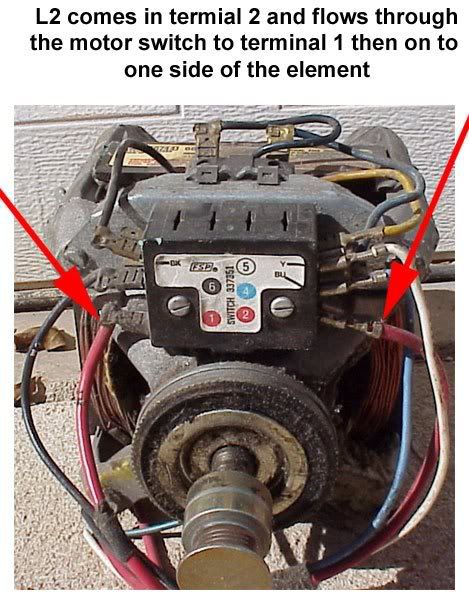

Motor switch will look something like (maybe exactly like) this...

Posted Image

#14 panama army

panama army

    Samanera

  • Grasshoppah
  • Pip
  • 7 posts

Posted 14 May 2011 - 06:10 PM

so understand about the 4M to the chassis

but 4M to 5M what am I looking for 120v again.
