M1 Ice Maker - Not Working


  • Please log in to reply
10 replies to this topic

#1 wackyjackster

wackyjackster

    Unsui

  • Grasshoppah
  • Pip
  • 3 posts
  • Flavorite Brew:Frosty cold beer!!!!

Posted 04 July 2011 - 02:28 PM

I have a Frigidaire FRS20ZRG with an M1 ice maker. The icemaker is dead. nothing will move. Even if I rotate the gearing, the ice maker will not complete the cycle on it's own as it has no power. What should I see at the plug and if I have zero volts there what further can I look at and where would I check? Thanks for your help.

Use the Appliantology Parts Search Box to Find What You Need!
Enter your model number, part number, type of appliance, brand, or even a part description.
365-day return policy on all parts purchased here, even electrical parts that have been installed!

#2 appl.tech.29501

appl.tech.29501

    Sensei

  • Appliantology Fellow
  • PipPipPipPipPip
  • 8,025 posts
  • Location: USA
  • Flavorite Brew:Waffle House Coffee

Posted 04 July 2011 - 02:50 PM

You should have 120V to the icemaker. That can be tested at the plug going to the icemaker.

Need your complete model# to find a wiring diagram. When you tried cycling the icemaker
did you have the door switch closed? On some models it will kill icemaker function.
If you would like to make a donation you may do so at the link below

One on one repair help now available !

http://homepage.mac....ppl.tech.29501/

http://twitter.com/ApplTech29501

http://www.facebook.com/ApplTech29501

www.eliteapplianceservice.org

#3 wackyjackster

wackyjackster

    Unsui

  • Grasshoppah
  • Pip
  • 3 posts
  • Flavorite Brew:Frosty cold beer!!!!

Posted 04 July 2011 - 03:30 PM

The door and switch were both opened. Regradless, after the door had been closed for some time nothing had happened.
Where does one find the complete model number? I did not see a data plate anywhere. The paperwork attached to the back does not list the model number.
I assume, by looking at part pricing, that it would be cheaper to pay the $80 for the whole ice maker if it is indeed bad.
Thanks again for your help.

#4 Samurai Appliance Repair Man

Samurai Appliance Repair Man

    Shōgun

  • Master Samurai Tech
  • 29,837 posts
  • Location: USA
  • Flavorite Brew:Sapporo Original Draft Rice Lager

Posted 04 July 2011 - 04:15 PM

Model number help ==> http://www.repaircli...My-Model-Number

#5 wackyjackster

wackyjackster

    Unsui

  • Grasshoppah
  • Pip
  • 3 posts
  • Flavorite Brew:Frosty cold beer!!!!

Posted 04 July 2011 - 04:30 PM

Well, I followed the link and out of all the possible spots shown, I have a sticker on the sidewall. It, however, is where I got the model number from in the first place. FRS20ZRG is the entire model number shown. Aside from that, if I have 120VAC at the plug to the ice maker should I then replace it since it is dead?

#6 Samurai Appliance Repair Man

Samurai Appliance Repair Man

    Shōgun

  • Master Samurai Tech
  • 29,837 posts
  • Location: USA
  • Flavorite Brew:Sapporo Original Draft Rice Lager

Posted 04 July 2011 - 04:54 PM

Yes, if you're getting a good power supply to the ice maker, 120 vac, and no operation, replace the ice maker.

Part link ==> http://www.repaircli...Number=FRS20ZRG

#7 appl.tech.29501

appl.tech.29501

    Sensei

  • Appliantology Fellow
  • PipPipPipPipPip
  • 8,025 posts
  • Location: USA
  • Flavorite Brew:Waffle House Coffee

Posted 04 July 2011 - 04:57 PM

If you have 120V at the plug

and the freezer is below 15 F. (has to be for icemaker to work)

remove the front cover from the icemaker and make sure the
gear on the front isn't stripped out.

If all thats good...time for an icemaker
If you would like to make a donation you may do so at the link below

One on one repair help now available !

http://homepage.mac....ppl.tech.29501/

http://twitter.com/ApplTech29501

http://www.facebook.com/ApplTech29501

www.eliteapplianceservice.org

#8 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 04 July 2011 - 06:14 PM

... Even if I rotate the gearing,

shouldn't rotate the gearing.... could ruin the gears
should only let the IceMaker Motor do that ... momentarily jumper T to H
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#9 Samurai Appliance Repair Man

Samurai Appliance Repair Man

    Shōgun

  • Master Samurai Tech
  • 29,837 posts
  • Location: USA
  • Flavorite Brew:Sapporo Original Draft Rice Lager

Posted 04 July 2011 - 06:17 PM

Don't believe these have the T to H modules; use the gear drive instead. You start harvest on these by pulling up on the rake fingers until they "catch."

#10 appl.tech.29501

appl.tech.29501

    Sensei

  • Appliantology Fellow
  • PipPipPipPipPip
  • 8,025 posts
  • Location: USA
  • Flavorite Brew:Waffle House Coffee

Posted 04 July 2011 - 06:19 PM

shouldn't rotate the gearing.... could ruin the gears
should only let the IceMaker Motor do that ... momentarily jumper T to H


This is a mechanical IM , Not the modular...hand advancement ok

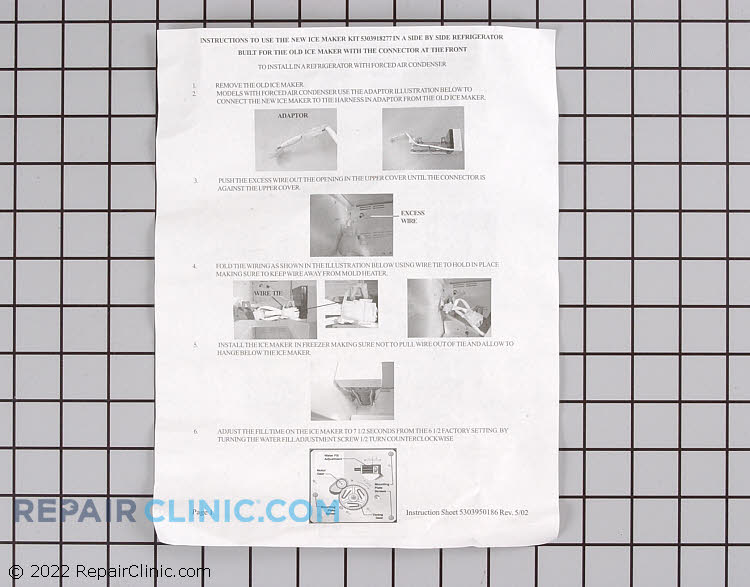

Posted Image
If you would like to make a donation you may do so at the link below

One on one repair help now available !

http://homepage.mac....ppl.tech.29501/

http://twitter.com/ApplTech29501

http://www.facebook.com/ApplTech29501

www.eliteapplianceservice.org

#11 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 04 July 2011 - 06:32 PM

This is a mechanical IM , Not the modular...hand advancement ok

:wallbash:
page of Frigidaire manual IceMaker info
218877000.pdf
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw
