Frigidaire fpdf4084kf range, trying to convert to NG

Natural Gas orifice source???

  • Please log in to reply
17 replies to this topic

#1 icarus

icarus

    Samanera

  • Grasshoppah
  • Pip
  • 9 posts
  • Location: USA

Posted 05 April 2012 - 03:57 PM

I recently bought a used stove. It has been converted to L/P and now it needs to be converted to NG. I cannot find a source for the NG orifices,, everybody wants to sell me all new burner tubes,, even though you can buy the L/P orifices!

Does some one have a set on the bench that are surplus out of a converted stove? That model uses orifices that are the same for a number of makers. Barring that, can someone give me the proper drill size of each of the 3 sized orifices so that I can drill out the L/P ones to the proper sizes?

With kindest regards,, thanking everyone in advance for any help,

Icarus

Use the Appliantology Parts Search Box to Find What You Need!
Enter your model number, part number, type of appliance, brand, or even a part description.
365-day return policy on all parts purchased here, even electrical parts that have been installed!

#2 SANTA

SANTA

    Senpai

  • Sublime Master of Appliantology
  • PipPipPipPip
  • 773 posts
  • Location: USA
  • Flavorite Brew:Windsor/Molson

Posted 05 April 2012 - 05:20 PM

Sorry icarus, I didn't find anything but until someone else comes along on this forum with the answer, did you search the oven inside and out for the NG orifices. They should have been taped somewhere inside the oven when it was converted if the person doing the conversion was thinking into the future.

#3 icarus

icarus

    Samanera

  • Grasshoppah
  • Pip
  • 9 posts
  • Location: USA

Posted 05 April 2012 - 05:26 PM

The previous owner did look carefully. I am don't actually have the stove yet. I know what the converter should have done,,, question is what did he do?

Like I said, there must be thousands of those orifices out there some where!

Icarus

#4 KurtiusInterupptus

KurtiusInterupptus

    B.M.F.

  • Academy Fellow
  • PipPipPipPipPip
  • 1,718 posts
  • Flavorite Brew:Killians Red

Posted 05 April 2012 - 06:46 PM

There are many different sizes and types of orfices...without the actual drill sizes of the orfices, no way you can properly fit any orfices in this stove. I could not get that model # to pull anything up.
Are you in Canada ?
As every cockroach knows , thriving on poisons is the secret of success.

#5 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 05 April 2012 - 07:18 PM

fpdf4084kf

might that perchance be a
fpdf4085kf ?
.

one of my video productions: “Easter Seals: Walk With Me”

every day is Down Syndrome Awareness Day
"A Child Is Waiting" . Burt Lancaster . Judy Garland . 1962

RegUS_PatOff > www.youtube.com/watch?v=oPAY2LsKVEw

#6 icarus

icarus

    Samanera

  • Grasshoppah
  • Pip
  • 9 posts
  • Location: USA

Posted 05 April 2012 - 07:43 PM

My bad,,, it is a fpdf 4085 kf, sorry about that folks!

I have the L/P orifices,, I just need to know the drill sizes,, or better yet source a set of NG orifices. I should also note,, I would like to get a copy of the conversion instructions as they don't seem to be available on line.

Icarus

PS Thanks everyone for your help..

#7 KurtiusInterupptus

KurtiusInterupptus

    B.M.F.

  • Academy Fellow
  • PipPipPipPipPip
  • 1,718 posts
  • Flavorite Brew:Killians Red

Posted 05 April 2012 - 08:12 PM

I can't see that they are available that way either...
you seem capable and willing so I will tell you...
obviously, since the unit is LP now, the existing orfices are smaller than NG orfices, giving you some room to experiment.
Generally, LPs are about half the size of their NG cousins. With a good numbered set of bits, you could experiment with each one till you find the proper size. Just flip the regulator back to NG and have some fun!
As every cockroach knows , thriving on poisons is the secret of success.

#8 icarus

icarus

    Samanera

  • Grasshoppah
  • Pip
  • 9 posts
  • Location: USA

Posted 05 April 2012 - 09:02 PM

So, the top burners have ratings of 5K, 9100,and 13K BTUs.



So, by my calcs from here:
http://www.joppaglas.../lowp_chrt.html
ORIFICE SIZE (DRILL SIZE) DRILL SIZE Decimal Equivalent Natural Gas Natural Gas LP Gas Gas Pressure→ 4" WC 7"WC 11" WC Gas use in Btus/hr Gas use in Btus/hr Gas use in Btus/hr 75 0.021 1200 1600 3080 70 0.028 2125 2825 5475 65 0.035 2240 4400 8560 60 0.040 4350 5750 11175 3/64" 0.047 5975 7900 15360 55 0.052 7350 9710 18890 50 0.070 13300 17590 34250


So the 13K burners would have a ~ .040 hole, the 9100 should have ~.035, and the 5k should be ~.028,, does this sound about right? (For L/P)

Therefore, I could use the current .040 for the the 5k unchanged (may be a bit too small)

Then use the .035 for the 9k burner,, and then drill one out to .070 for the 13k for NG

Does that sound about right?

Also, not having done a Frigidaire, and not having the paper (or on line instructions) does the regulator just change from NG to L/P with a flip like most common stove regs?

Once again,, thanks for any and all help,

Icarus

Sorry, the chart didn't copy, if you click the link there is a pretty simple chart showing drill sizes (decimal eq) and BTU range with both 4", 7" and 11" WC gas.

Icarus

#9 RegUS_PatOff

RegUS_PatOff

    Sensei

  • Academy Instructor
  • PipPipPipPipPip
  • 33,588 posts
  • Location: USA
  • Flavorite Brew:Chief NTSC Black & White

Posted 05 April 2012 - 10:02 PM

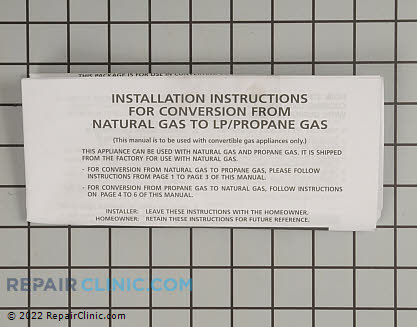

Posted Image
