Service Manuel

[Rich Armstrong]

Manufacturer: Kenmore

Type of Appliance: Top Load Washing Machine

Model Number: 110.23812100

Have you validated the model number at an online parts site like Repair Clinic? (yes or no): Yes

Have you watched the video on how to search for manuals and have you searched the Downloads section prior to posting this request? (yes or no): Yes

I need more information about the Wash Action Switch. I made a post concerning this subject and the Timer Chart at Appliance Repair help without success. Thank you

[Vance R]

All I could find is the tech sheet 8530442 here on site:

There is a wire diagram 8530438 which is a stripped down version of the tech sheet.  It is not here on site. Maybe @Captain Dunsel knows about a service manual.

[Rich Armstrong]

Thank you Vance

[Captain Dunsel]

No service manual that I know of.

[Rich Armstrong]

Thank you! I’ll buy it from ServiceManuals.net and donate it to you. I can’t even find where the wash action switch is located or can be purchased.

[Vance R]

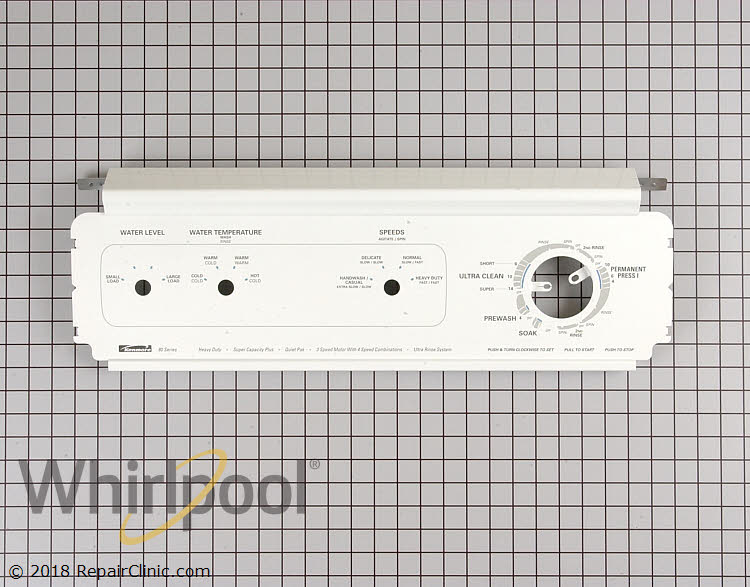

Looking for the wrong name, change it to speeds then cycle select. Item #5 on the console, 8280503. Part is nla at sears parts direct.





http://c.searspartsdirect.com/lis_png/PLDM/P0111056-00002.png

[Vance R]

try 2



Edited July 11, 2022 by Vance R
try for picture
